CALCINER - SIAM REFRACTORY
The operational characteristics of the calciner include decarbonization and preheating processes. In addition, the increasing use of alternative fuels and raw materials leads to a significant rise in the circulation of chemical compounds within the system. Our PH40AF, C series, and C-SiC series products are specifically developed to provide enhanced performance and durability under these demanding conditions.
| Brick Lining | Castable Lining | ||

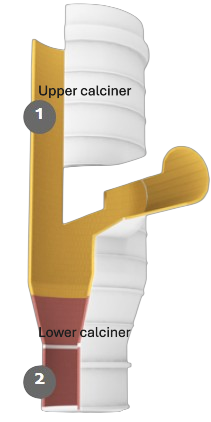

| Upper Calciner |
Working Lining (Normal Condition) |
K35, K43, KB60 [MORTAR43M(W)/(D)] |
CAST13ES CAST15ES C40A QUIKGUN C13 QUIKGUN C15 |
|
Working Lining (Severe Condition) |
K43, PH40AF, KB60PB [MORTAR43M(W)/(D)] |
CAST15ES C40A, C60A QUIKGUN C15 QUIKGUN LC1550 SupraGun 155KN QuikShot A60 |
|
| Insulation Lining |
IF35, HI16, HI20 Calcium Silicate Board [MORTAR43AM(W)/(D)] CAST11LW, CAST13LW QUIKGUN LWT1, QUIKGUN LWT3 |
||
| Anchoring system | - |
Stainless Steel AISI 310 Stainless Steel 253MA |
|
| Lower Calciner |
Working Lining (Normal Condition) |
K35, K43, KB60 PH40AF-55 PH40AF-S10 [MORTAR43M(W)/(D)] |
CAST15ES C40A, C60A QUIKGUN C15 QUIKGUN LC1550 SupraGun 155KN QuikShot A60 |
|
Working Lining (Severe Condition) |
K43, PH40AF, KB60PB PH40AF-55 PH40AF-S10 [MORTAR43M(W)/(D)] |
C60A C-SIC 300, C-SIC 500 QUIKGUN LC1650 SupraGun 165E SupraGun S400 QuikShot A60 QuikShot 30 SIC |
|
| Insulation Lining |
IF35, HI16, HI20 Calcium Silicate Board [MORTAR43AM(W)/(D)] CAST11LW, CAST13LW QUIKGUN LWT1, QUIKGUN LWT3 |
||
| Anchoring system | - |
Stainless Steel AISI 310 Stainless Steel 253MA |
|

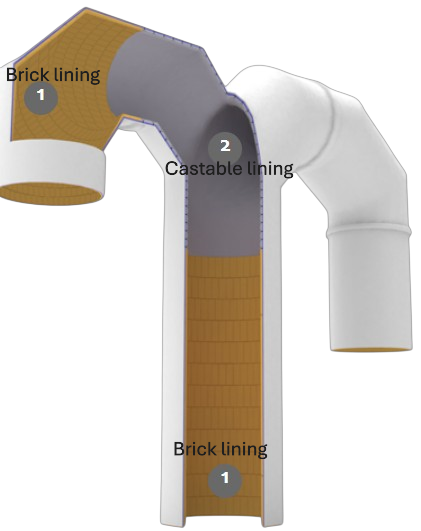

CALCINER BEND TO CYCLONE / CALCINER EXIT DUCT - SIAM REFRACTORY
| Brick Lining | Castable Lining | ||
|
Calciner Bend to Cyclone Calciner Exit Duct |
Working Lining (Normal Condition) |
K35, K43, KB60 [MORTAR43M(W)/(D)] | CAST15ES, C40A, C60A QUIKGUN C15 QUIKGUN LC1550 SupraGun 155KN QuikShot A60 |
|
Working Lining (Severe Condition) |
K43, PH40AF, KB60PB PH40AF-S5, PH40AF-S10 [MORTAR43M(W)/(D)] | C60A AbraCast 40 SiC AbraCast 60 SiC C-SiC 300, C-SiC 500 QUIKGUN LC1650 SupraGun 165E SupraGun S400 QuikShot A60 QuikShot 30 SiC | |
| Insulation Lining |
IF135, HI16, HI20 Calcium Silicate Board [MORTAR43AM(W)/(D)] CAST11LW, CAST13LW QUIKGUN LW11, QUIKGUN LW13 |
IF135, HI16, HI20 Calcium Silicate Board [MORTAR43AM(W)/(D)] CAST11LW, CAST13LW QUIKGUN LW11, QUIKGUN LW13 |
