CYCLONES - SIAM REFRACTORY
By considering the operating parameters and the specific location of each cyclone, we apply our comprehensive thermo-technical expertise to product selection and engineering design. Our PH40AF, CAST series, C series, C-SiC series, and AbraCast series products have been developed based on our accumulated know-how and extensive user experience, ensuring reliable and high service performance under demanding operating conditions.
| Brick Lining | Castable Lining | ||
| Upper Cyclones | Working Lining |
K30, K35 [MORTAR30A(W)/(D)] |
CAST13ES QUIKGUN C13 |
| Insulation Lining |
IF35, HI6, HI20 Calcium Silicate Board [MORTAR43AM(W)/(D)] CASTILW, CASTIL3W QUIKGUN LWT1, QUIKGUN LWT3 |
||
| Anchoring system | - | Stainless Steel AISI 304 | |
| Middle Cyclones | Working Lining |
K35, K43 [MORTAR30A(W)/(D)] |
CAST15ES QUIKGUN C15 |
| Insulation Lining |
IF35, HI6, HI20 Calcium Silicate Board [MORTAR43AM(W)/(D)] CASTILW, CASTIL3W QUIKGUN LWT1, QUIKGUN LWT3 |
||
| Anchoring system | - | Stainless Steel AISI 304 | |
| Lower Cyclones |
Working Lining (Normal Condition) |
K35, K43, KB60 [MORTAR30A(W)/(D)] |
CAST15ES C40A, C60A QUIKGUN C15 QUIKGUN LC1550 SupraGun 155KN QuikShot A60 |
|
Working Lining (Severe Condition) |
K43, PH40AF, KB60PB PH40AF-55 PH40AF-510 |
AbraCast 40 SIC C-SIC 300, C-SIC 500 QUIKGUN LC1650 SupraGun 165E SupraGun S400 QuikShot A60 QuikShot 30 SIC |
|
| Insulation Lining |
IF35, HI6, HI20 Calcium Silicate Board [MORTAR43AM(W)/(D)] CASTILW, CASTIL3W QUIKGUN LWT1, QUIKGUN LWT3 |
||
| Anchoring system | - |
Stainless Steel AISI 310 Stainless Steel 253MA |
|

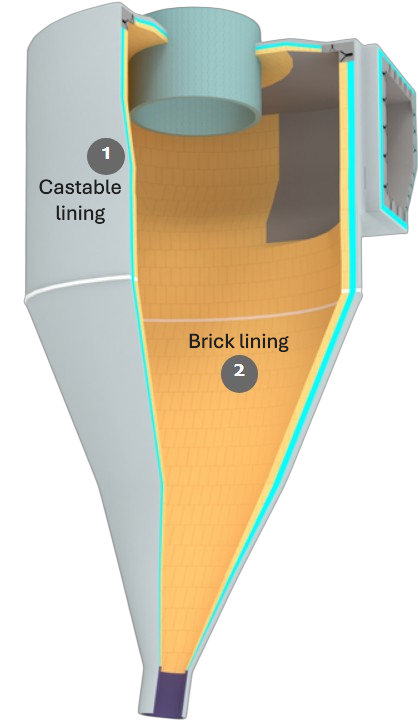

| Remark:Brick lining in the figure can be replaced by Castable lining depending on the refractory lining design. | |||
