CYLPEBS - BALLPEBS (BOULPEBS) - CONEPEBS

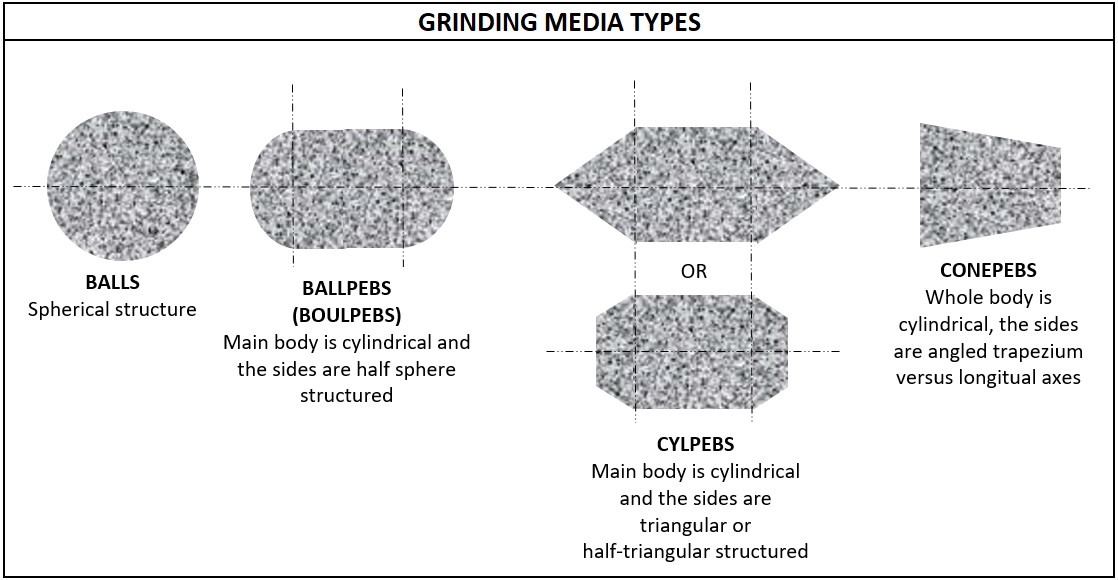

Other grinding media, apart from spherical grinding balls, can be used in different grinding processes and depending on the nature of the mineral. These grinding media are classified as shown below, and the wide product range in GMS-FTRsteel production provides solutions for many processes. Different diameters and sizes can be produced according to the customer's demand.

                                   GMS-FTRsteel production portfolio.

SIZE - mm
Ø x L		 SHAPE PRODUCTION
TECHNOLOGY		 Cr% HRc
Ø8 x 8 cylindirical clypebs cast max. 3 -
Ø16 x 16 cylindirical clypebs cast 11 - 27 63 - 67
Ø19 x 19 cylindirical clypebs cast 11 - 27 63 - 67
Ø20 x 20 cylindirical clypebs cast 11 - 27 63 - 67
Ø22 x 22 cylindirical clypebs cast 11 - 27 63 - 67
Ø25 x 25 cylindirical clypebs cast 11 - 27 63 - 67
Ø35 x 35 cylindirical clypebs cast 11 - 27 63 - 67
Ø40 x 40 cylindirical clypebs cast 11 - 27 63 - 67
Ø13 x 16 ballpebs cast 11 - 27 63 - 67
Ø16 x 20 ballpebs cast 11 - 27 63 - 67
Ø19 x 24 ballpebs cast 11 - 27 63 - 67
Ø22x 28 ballpebs cast 11 - 27 63 - 67
Ø25 x 30  cylindirical clypebs cast 11 - 27 63 - 67
Ø25 x 32 ballpebs cast 11 - 27 63 - 67
Ø29 x 39 ballpebs cast 11 - 27 63 - 67
Ø35 x 40 cylindirical clypebs cast 11 - 27 63 - 67
